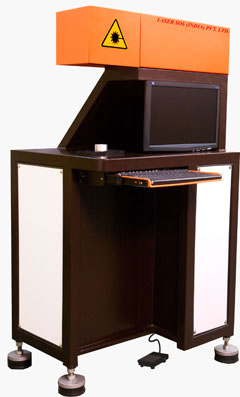

| Fiber Laser Marking Machine |
Laser marking is used to mark various materials quickly, reliable and with high precision. It ia a non-contact technique and does not damage the product. It eliminates the use of die cutters, blades, scribers or inks. The laser is controlled using a PC. Images, graphics and text can be created to suit your needs.
Software Features :
Use polylines, squares, rectangles, circles, ellipses and text.
Input from Corel Draw, Auto CAD or other graphics software (HPGL, semi-Postsript, DXF).
Bar code Marking.
Serialization.
Different Fonts.
Define upto 8 layers for marking. |
| Fiber Laser System |
| Laser Source |
Diode Pumped Laser |
| Wavelength |
1064 Nm ± 10 nm |
| Beam Mode |
Multimode |
| Output Power |
20 Watts |
| Beam Delivery |
Galvanometer Driven Mirrors, Flat Field Type |
| Utilities |
Electrical Supply 230 V AC, Single Phase |
| Marking Specifications |
| Marking Field Size (mm) |
62 x 62 |
100 x 100 |
150 x 150 |
| Entrance Beam Bundle Diameter (mm) |
12 |
12 |
12 |
| Working Distance (mm) |
105.8 |
184.3 |
257 |
| Resolution (m) |
15 |
25 |
30 |
| Writing Speed (characters / sec) |
300 |
300 |
300 |
|
| ( Distance between edge of head & working field, character size 12 mm, lens & material dependent) |
Control System :
Pentium 4 CPU, 512 MB RAM, 40/80 GB HDD, CD-ROM, 14" colour monitor.
|
| |
Warranty & Maintenance :-
One year warranty on the system from material & manufacturing defects. This warranty excludes all optics and consumables like filters and de-ionised filters. Service is provided by our own trained personnel whenever needed. After warrenty period, annual service contract may be provided if needed.
Specifications subject to change without notice.
|
| |
| We can also provide 300 x 300 mm Marking field size on request. |
|
|
|
|
|
|
|
 |
|
 |
|
|
