Nd:YAG Lamp Pumped Laser Marking Machine

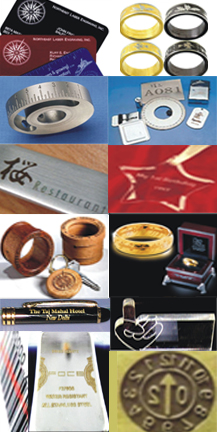

Laser marking is used to mark various materials quickly, reliable and with high precision. It ia a non-contact technique and does not damage the product. It eliminates the use of die cutters, blades, scribers or inks. The laser is controlled using a PC. Images, graphics and text can be created to suit your needs.

Software Features :
  • Use polylines, squares, rectangles, circles, ellipses and text.
  • Input from Corel Draw, Auto CAD or other graphics software (HPGL, semi-Postsript, DXF).
  • Bar code Marking.
  • Serialization.
  • Different Fonts.
  • Define upto 8 layers for marking.
  • Laser System Lamp Pumped
    Laser Source Lamp Pumped Laser
    Wavelength 1064 Nm ± 10 nm
    Beam Mode TEM00
    Output Power 50 to 60 Watts, CW
    Beam Delivery Galvanometer Driven Mirrors,
    Flat Field Type
    Utilities Electrical Supply 380 V AC,
    50/60 Hz, Three Phase
    Marking Specifications
    Marking Field Size (mm) 62 x 62 100 x 100 150 x 150
    Entrance Beam Bundle Diameter (mm) 12 12 12
    Working Distance (mm) 105.8 184.3 257
    Resolution (m) 15 25 30
    Writing Speed (characters / sec) 300 300 300

    Control System :
    Pentium 4 CPU, 512 MB RAM, 40/80 GB HDD, CD-ROM, 14" colour monitor.
    ( Distance between edge of head & working field, character size 12 mm, lens & material dependent)

    Warranty & Maintenance :-
  • One year warranty on the system from material & manufacturing defects. This warranty excludes all optics and consumables like filters and de-ionised filters.
  • Specifications subject to change without notice.
  •
    We can also provide 300 x 300 mm Marking field size on request.
